Wire Definitions:
Black (-) Red (+) Yellow (signal) • Same as Hitec wire configuration
Brown (-) Red (+) Orange (signal) • Same as JR Wire Configuration
| Type | Digital |
| Weight | 13g |
| Size | 22.9*12*25.4mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 4.8~6.0Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (4.8V) | 0.12sec/60° at no load |
| Operating Speed (6.0V) | 0.10sec/60° at no load |
| Stall Torque (4.8V) | 1.2kg.cm |
| Stall Torque (6.0V) | 1.5kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| 360 Modifiable | No |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (4.8V) | 10mA/idle and120mA no load operating |
| Current Drain (5.0V) | 10mA/idle and 140mA no load operating |
| Stall Current | 900mA/1000mA |
| Dead Band Width | 4usec |
| Motor Type | 3 Pole Ferrite Drive |
| Bearing Type | / |
| Horn gear spline | 21T |
| Gear Type | Metal |
| Connector Wire Length | 180mm |
| Stock Code | Product Name |

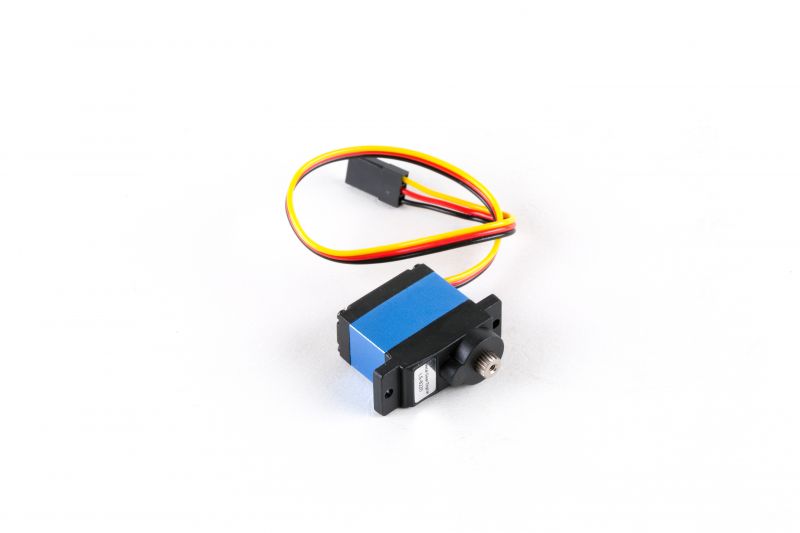

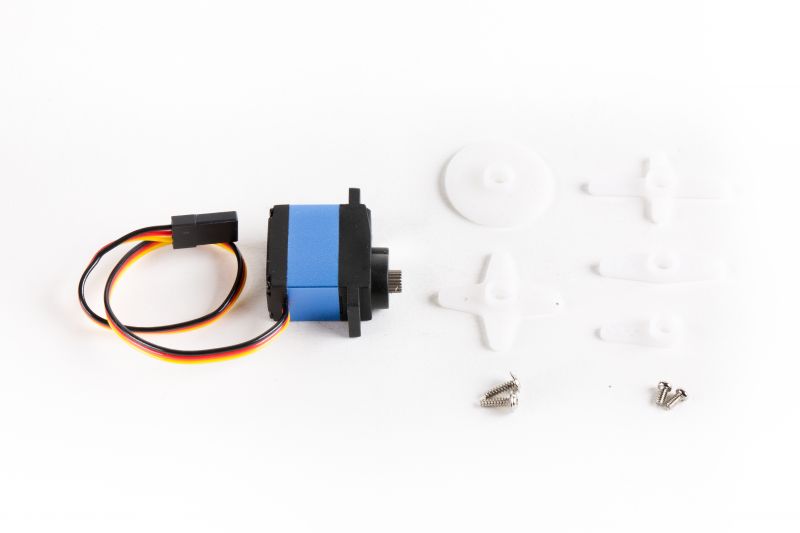

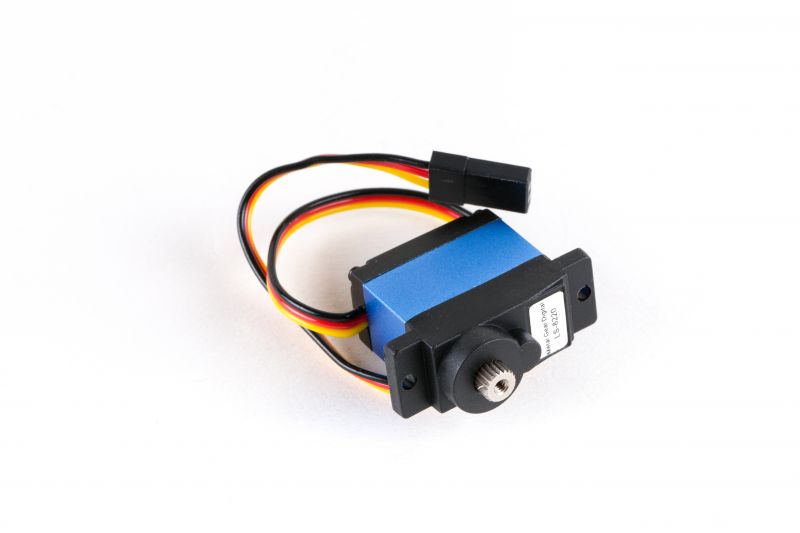

| LS-S8220 | Metal Gear Digital Servo - 90 |
