Kit Contents - Housefly
| Component Name |
Value |
Qty |
Designator |
Important Info |
| LED 5mm |
Bright White |
2 |
LED1, LED2 |
Watch for polarity. Long leg is positive (+) |
| Resistors |
33K |
1 |
R1 |
No Polarity |
| Resistors |
330 ohms |
2 |
R2, R3 |
No Polarity |
| Photocell |
GL5516 |
2 |
R5, R6 |
No Polarity |
| On/Off Switch |
CR1220 |
1 |
SW1 |
No Polarity |
| NPN Transistor |
S9013 H |
1 |
Q1 |
Watch the Position |
| Potentiometer |
10K |
1 |
R4 |
Watch the Position |
| Battery Clips |
AAA |
4 |
BT1 - B4 |
Watch the Position |
| PCB |
70 x 80 mm |
1 |
N/A |
N/A |
| Desoldering Braid |
6" Long (2.5mm width) |
1 |
N/A |
For removing solder when correcting mistakes |
Step-by-Step Instructions - Housefly
Soldering Basics PDF download
Step-by-Step PDF download

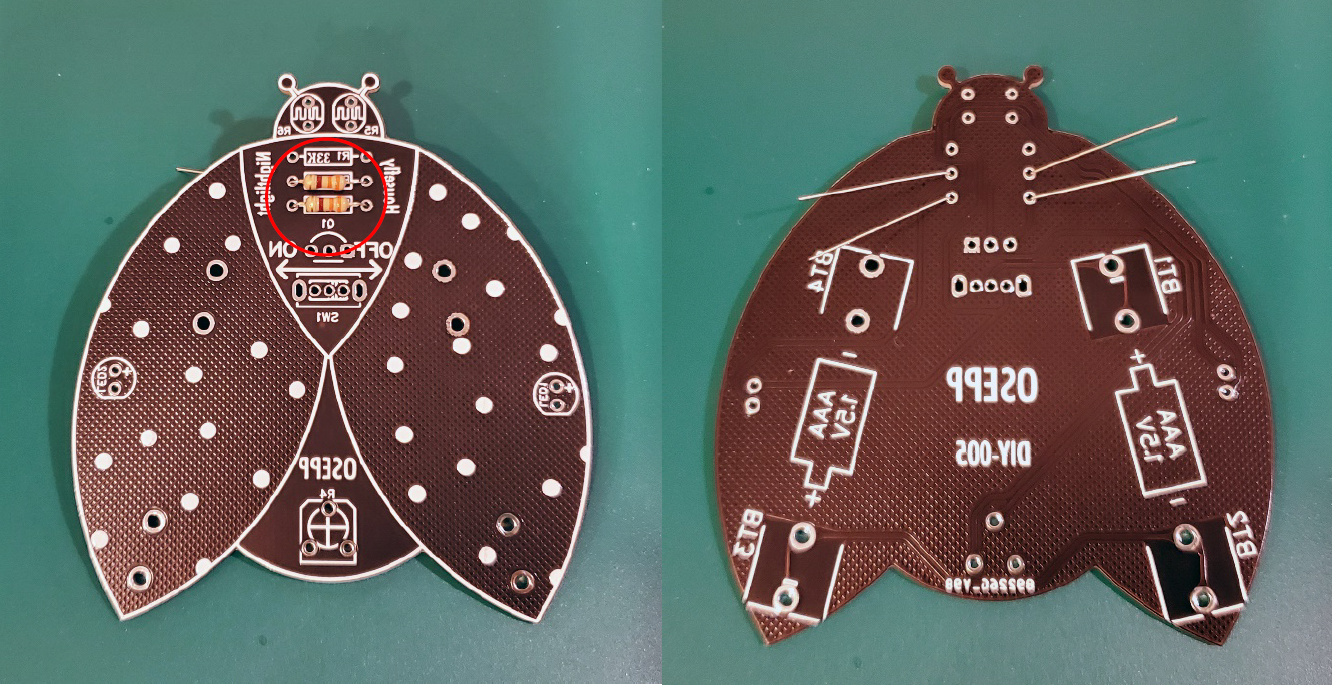

STEP 1: Place and solder the 330-ohm resistors into place
- There is no polarity with the resistors.
- Bend the component leg to the side to hold the resistor in place for soldering.
- A diagonal cutter is required to cut the component legs once soldering has been completed.
STEP 2: Place and solder the 33K resistor into place
- There is no polarity with the resistors
STEP 3: Place and solder LEDs into place
- The longer lead on the LED is positive (+)
- To hold the LED in place to solder, bend the lead on the back of the PCB
- A diagonal cutter is required (not Incl.) to cut off the leads after soldering
STEP 4: Place and solder the On/Off switch into place
- There is no polarity with the on/off switch
STEP 5: Place and solder the photo cells into place.
STEP 6: Place and solder the potentiometer into place
STEP 7: Place and solder the battery clips into place
Completed Reference Image:
Kit Contents - Ladybug
| Component Name |
Value |
Qty |
Designator |
Important Info |
| LED 5mm |
Bright White |
6 |
LED1 - LED6 |
Watch for polarity. Long leg is positive (+) |
| Resistors |
330 ohms |
6 |
R1 - R6 |
No Polarity |
| Resistors |
100K |
2 |
R7, R8 |
No Polarity |
| IC |
NE555P |
1 |
U1 |
Watch the position of the notch |
| NPN Transistor |
S9013 H |
2 |
Q1, Q2 |
Watch the position |
| Capacitor |
100uF |
1 |
C1 |
Watch for polarity. Long leg is positive (+) |
| Battery Clips |
AAA |
4 |
BT1 - B4 |
Watch the position |
| PCB |
70 x 80 mm |
1 |
N/A |
N/A |
| Sound Sensor |
GM1976P-34DB |
1 |
MIC1 |
Watch the position |
| Desoldering Braid |
6" Long (2.5mm width) |
1 |
N/A |
For removing solder when correcting mistakes |
Step-by-Step Instructions - Ladybug
Soldering Basics PDF download
Step-by-Step PDF download
STEP 1: Place and solder the IC into place
- Match the notch on the IC to the silkscreen on the PCB.
STEP 2: Place and solder the 2 x 18K resistors into place
- There is no polarity with the resistors
- Bend the component leg to the side to hold the resistor in place for soldering
- A diagonal cutter is required to cut the component legs once soldering has been completed
STEP 3: Place and solder the 2 x 100K resistors into place
- There is no polarity with the resistors
STEP 4: Place and solder the 6 x 330-ohm resistors into place
- There is no polarity with the resistors
STEP 5: Place and solder capacitor into place
- Watch the position. The long leg is positive
STEP 6: Place and solder the sound sensor into place
STEP 7: Place and solder the LEDs into place
- Watch the polarity. The long leg is positive (+)
STEP 8: Place and solder the 2 x NPN transistors into place
Step 9: Place and solder the battery clips into place
Completed Reference Image:
