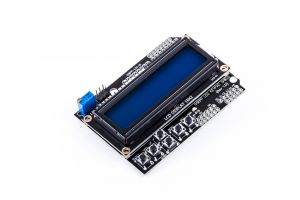

The OSEPP 16 x 2 LCD Display and Keypad shield can plug directly onto the Arduino and Arduino compatible boards.   The LCD panel displays characters in white with a blue backlit and can display up to two lines of 16 characters.  The shield includes 6 momentary push button that can be used to implement a 5 buttons keypad including up, down, left, right and select function.  The sixth push button brings out the Arduino’s reset button to the top of the shield.

The OSEPP 16 x 2 LCD Display and Keypad shield interfaces with the Arduino board using digital pin 4 to10 and analog pin 0.  The contrast can be adjusted via a trim pot and the backlit can be turn on and off.  The shield is 5V compatible.

Features and Specifications:

• Mate with Arduino and Arduino compatible boards
• Display up to 16 characters by 2 line
• Integrated the SPLC780D 16 COMs x 40 SEGs dot-matrix LCD controller and driver
• 5V operating voltage
• 5 button keypad – up, down, left, right, and select
• Brings out the Arduino’s reset button to the top of the shield

Downloads
OSEPP 16x2SHD-01 Schematic
LS-3006 Sample Code
OSEPP 16x2SHD-01 Data Sheet
